About IMDRAFTING SERVICES
Our History
Founded in 1999, IMDRAFTING SERVICES has been a leader in the drafting equipment industry for over 30 years with hands- on engineering and tool making, cad design and complex problem solving focusing on, RF, Military and automotive precision work Our commitment to quality and customer satisfaction is unmatched.
Our Philosophy
We offer a wide range of products. All of our products are made with the highest quality materials and are designed to stand the test of time. We always create products to be practical in a manufacturable design. We understand both design and production, so that our clients avoid costly rework.
Our purpose
Our purpose is to create a trustworthy relationship with our clients. We have years of experience that solves problems others can't. We have a high- precision environment and not a mass- production shop.
Our Services
- CAD design for Manufacturability
- Tool making & design consulting
- CNC machining ( Milling, Turning, Grinding)
- RF Enclosure design
- Injection Mold Design
-Custom Component Manufacturing
- Prototype Development
- Material Selection
Our Team
Our team of experienced professionals is dedicated to providing the best possible service to our customers. Whether you need help selecting the right product or have a question about an existing order, we are here to help.
Technologies and Tools
CAD Design
Autodesk Inventor, Fusion 360, Eagle, Autocad, Rhino
Graphics
Adobe CS6
Vectors
Vector Magic
Prototyping
Da Vinci Pro 3d printer ABS, PLA (200 x 200 x 200)
Creality Ender 3 ABS, PLA (300 x 300 x 300)
Advanced Manufacturing Solutions

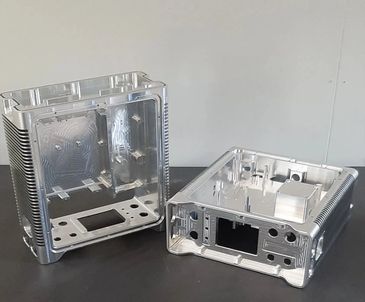

CNC Milling
CNC Milling is a precise manufacturing process that uses computer controlled machines to remove material from work pieces, creating complex parts and components. CNC Milling offers accuracy and tight tolerances idea for intricate designs. Perfect for producing custom parts, prototypes.
- Aluminium, Copper, brass and stainless steel
-2,5D and 3D contouring
- Precision Pockets and slots
CNC Turning
CNC turning is a precise manufacturing process where computer controlled laths shape materials such as wood or metal into custom parts, it allows high accuracy and consistency ideal for more complex designs.
- Shafts, bushings, threaded components
- High Concentricity requirements
Surface Grinding
Surface Grinding is a precision machining process that uses a rotating abrasive wheel to remove material from work pieces, creating a smooth flat surface. It achieves high surface control and tight tolerances, ideal for parts requiring precise flatness.
Surface Grinding enhances surface quality removing imperfections nd improving part functionality.

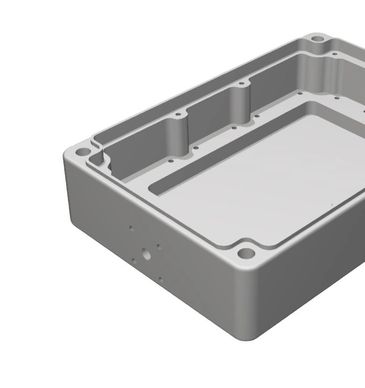

RF hardware design
RF Hardware design refers to the design and development of hardware components, often involving custom or specialized solutions. Having always worked closely with RF engineers. We have a lot of experience in the Military and Telecommunications industry.
- RF enclosure machining
- Shielding strategies
- Waveguide interfaces
- Thermal management
- Precision alignment features
- Material conductivity considerations

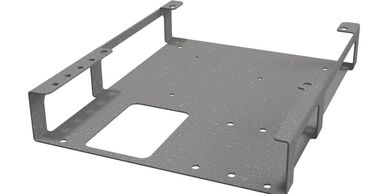

Custom Part Machining
Custom part machining creates bespoke components tailored to specific needs, from prototypes to production runs, It offers a precision craftsmanship with expert machining for complex geometries and tight tolerances. From design to delivery we always work alongside you to meet deadlines.
Injection Mould design and tool making.
Injection Mould and tool making create custom mould's for producing plastic parts. We design mould's tailored to your parts geometry and production needs with high quality mould's that ensure accurate and efficient production.
3D Printing
3D printing creates complex parts and prototypes quickly. 3D printing turns designs into physical models fast and is perfect for testing and iteration. it produces intricate designs and shapes . Our advanced technology allows us to create complex parts with precision and accuracy.

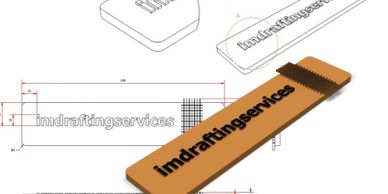

Laser Engraving
Laser engraving precisely etches designs onto various materials like wood, metal and plastic. We provide Laser Engraving services that meet your every need. We make sure that we offer precision cutting and engraving, catering to different industries. It is accurate, detailed engravings for business logos, text and complex designs. It is perfect for branding and personalized products.
Our Clients
